miniiSED® Fully Automated Erythrocyte Sedimentation Rate (ESR) Analyzer

--------------------

Minimize the Hassle of ESR Testing in Your Lab

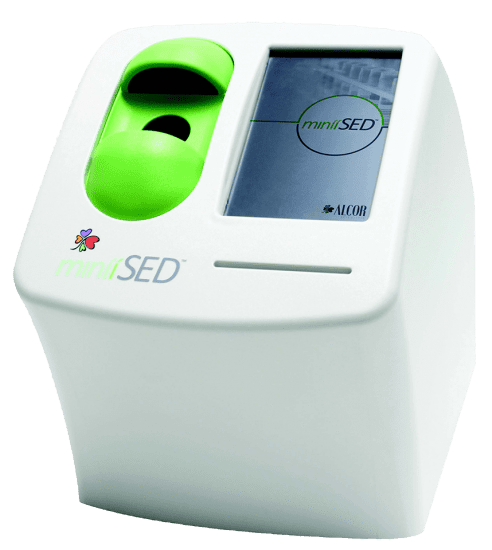

miniiSED® Automated ESR Analyzer
  • STAT results in only 15 seconds
  • Fully automated from primary EDTA tubes
  • 100µL sample volume
  • No exposure to patient sample
  • Ideal compact size
  • High correlation to Westergren method
  • Easily interfaces to LI

Overview

Erythrocyte Sedimentation Rate is a clinical laboratory test that measures and analyzes red blood cells as an indicator of inflammation, as well as to the patient’s response to medications, such as chemotherapy or steroids.

The miniiSED® is the newest addition to the ALCOR family of Erythrocyte Sedimentation Rate (ESR) analyzers from ALCOR Scientific. The miniiSED® measurement of ESR is fast, accurate and unaffected by variables associated with traditional methodologies, such as hematocrit. This single position, fully automated ESR analyzer works directly from primary EDTA tubes or BD Microtainer® MAP Microtubes, requires 100 microliters of sample, has an internal barcode reader, and produces stat results in 15 seconds!

This compact fully-automated ESR analyzer utilizes photometric reading to quantify the Rouleaux formation, which is the earliest and most critical phase of sedimentation. miniiSED’s micro-flow cell captures the critical kinetics of RBC in highly controlled testing environment to produce ESR results in 15 seconds. The analyzers results are unaffected by the variables commonly associated with traditional ESR testing methods. Some of these variables include hematocrit, MCV and temperature.

The miniiSED® is the ideal ESR analyzer for emergency rooms, POLs, and small hospital laboratories.

Link icon miniiSED® Reviews in SelectScience®

Notable Health Groups using iSED®/miniiSED®:

  • ACL Laboratories (WI) – iSED/miniiSED
  • Bon Secours Mercy Health (OH) – iSED/miniiSED
  • SSM Health (MO, WI) – iSED/miniiSED
  • Sanford Health (ND, SD) – iSED/miniiSED
  • OSF Healthcare (IL) – iSED
  • Duke Health (NC) – iSed/miniiSED
  • UPMC (PA) – iSED
  • Partners Healthcare (MA) – iSED/miniiSED
  • Lifespan Health (RI) – iSED
  • AdventHealth (FL) – iSED
  • Kaiser South (CA) – iSED

Specifications

Principle of Measure: Photometrical rheoscope
Analytical Range 1-130 mm/hr
Sample Requirements: 100µL whole blood (500µL dead volume)
Tube Requirements: 13 x 75 mm, test tube in EDTA anti-coagulant, capped
Quality Control: Barcoded Seditrol® QC
Barcode Reader: Internal
Interface Specifications: Serial RS232 port for LIS connection
Weight: 4.445 kgs / 9.8 lbs
Dimensions (H x W x D): 24 x 18 x 26 (cm) /9.5 x 7.1 x 10.4 (in)
Voltage: 100-240VAC
Frequency Range: 50-60 Hz
Power: 60W

Benefits

STAT results in 15 seconds:
Simply insert the primary EDTA sample tube in the sample entry port and walk away. This ESR analyzer will have results ready for you in 15 seconds instead of 15-60 minutes as when using traditional methods of ESR testing. The miniiSED® has a maximum throughput of 180 tests per hour.

Fully automated from primary EDTA tubes:
No more graduated pipettes, special cuvettes, duplicate sample tubes, or sample transfer disposables! No longer generating contaminated waste, miniiSED® offers a decreased cost of ESR testing. In addition using closed-container sampling technology there is no staff exposure to patient sample.

100µL sample volume:
The miniiSED® requires a sample volume of only 100 microliters of whole blood! There is no need to waste time drawing two EDTA tubes or a designated disposable tube. The small sample volume makes the miniiSED® the perfect ESR analyzer for pediatric and geriatric patients. Compatible with BD Microtainer® MAP Microtubes.

Compact size:
The miniiSED® saves you space on the lab bench or in the office. In fact the analyzer takes up about as much room as your office phone.

Positive patient identification via internal barcode reader:
The miniiSED’s internal barcode reader assures all samples are correctly identified and tracked. The analyzer easily interfaces to LIS systems.
