Nucleic Acid Extraction Instruments

--------------------

ANDiS 350 and ANDiS 380 Automated Nucleic Acid Extraction Systems from 3DMed

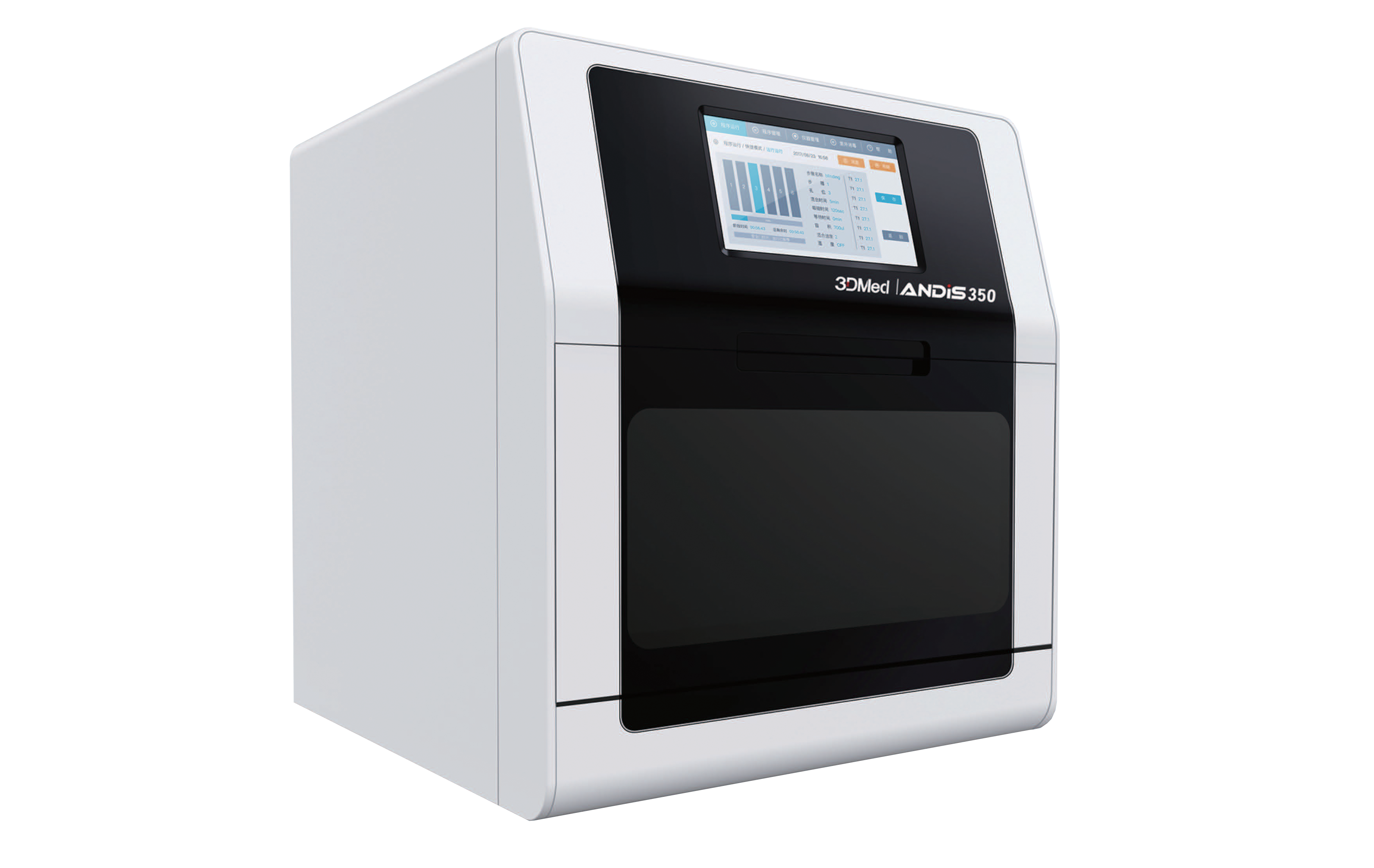

ANDiS 350 Automated Nucleic Acids Extraction System

ANDiS 350 Automated Nucleic Acid Extraction System

The quality and quantity of DNA and RNA extracted from clinical specimens will have a major impact on subsequent molecular tests. ANDiS 350 Automated Nucleic Acid Extraction System enables fully automated extraction of highly pure nucleic acids with magnetic bead-based technology. Extracted nucleic acids can be used for molecular testing with a wide variety of techniques such as PCR, qPCR, NGS library preparation, and microarray.

Features:

  • Reaction Volume: 30μl-1000μl
  • Sample Throughput: 16/32
  • Magnetic beads recovery rate: >95%
  • Power supply: AC120V 60Hz, 450W (USA)
  • Dimensions: 400mm x 400mm x 450mm, Weight: 35kg
  • Extraction variation: CV<3%
  • Heating temperature: Adjustable from room temperature to 115℃/240ºF
  • Reagent type: Magnetic bead-based open source reagents
  • Extraction time: 30-60 minutes (reagent dependent)
  • Well Plate: 96 well deep plate
  • Operation system: Android system with touch screen
  • Memory storage: Up to 500 programs

Important Documents

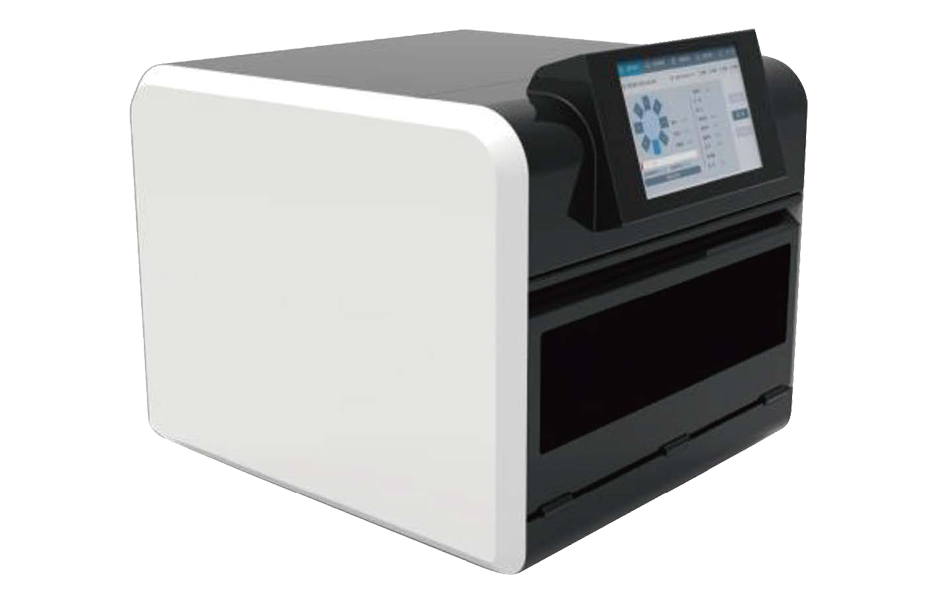

ANDiS 380 Automated Nucleic Acids Extraction System

ANDiS 380 Automated Nucleic Acids Extraction System

ANDiS 380 Automated Nucleic Acids Extraction System enables fully automated extraction of highly pure nucleic acids with magnetic bead-based technology. Extracted nucleic acids can be used for molecular testing with a variety of techniques such as PCR, qPCR, NGS , and microarray. ANDiS 380 and ANDiS Viral RNA Auto Extraction & Purification Kit have obtained the NMPA class I medical device filling, CE certification, and have completed registration and listing with the FDA.

Features:

  • Reaction Volume: 30μl-1000μl
  • Sample Throughput: 1~96
  • Magnetic beads recovery rate: >95%
  • Dimensions: 21.5in x 24in x 20in, Weight: 50kg
  • Extraction variation: CV<3%
  • Heating temperature: Adjustable from room temperature to 115℃/240ºF
  • Reagent type: Magnetic bead-based open source reagents
  • Well Plate: 96 well deep plate
  • Operation system: Android system with touch screen
  • Memory storage: Up to 500 programs

Important Documents
